1、 Product Name

rubber synchronous belt


2、 Product Material

Rubber and polyurethane


3、 Selection method







4、 Product rendering







5、 Parameters


Name

Type

Pitch

Tooth widthTooth heightTotal thickness

HTD

3M

3mm

1.78mm1.22mm2.4mm

5M

5mm

3.05mm2.06mm3.8mm

8M

8mm

5.15mm3.38mm6.0mm

14M

14mm

9mm6.02mm10mm

20M

20mm

14mm8.4mm13.2mm



Name

Type

Pitch

Tooth widthTooth heightTotal thickness

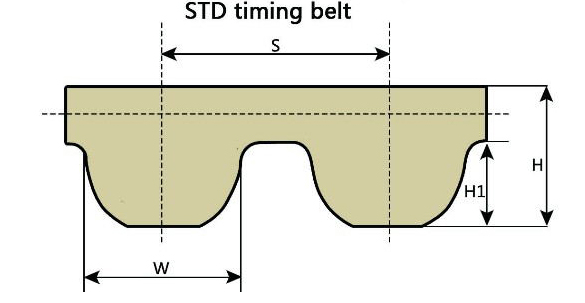

STD

3M

3mm

1.78mm1.22mm2.4mm

5M

5mm

3.05mm2.06mm3.8mm

8M

8mm

5.15mm3.38mm6.0mm

14M

14mm

9mm6.02mm10mm

20M

20mm

14mm8.4mm13.2mm



Name

Type

Pitch

Tooth widthTooth heightTotal thickness

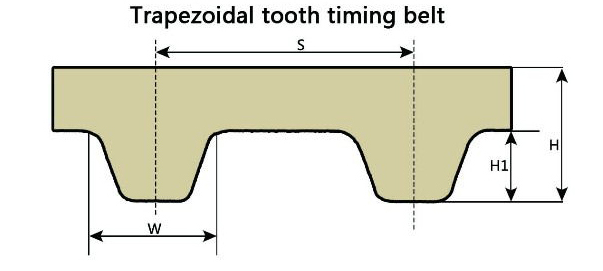

ladder-type

MXL

2.032mm

1.14mm0.51mm1.14mm

XL

5.08mm

2.57mm1.27mm2.3mm

L

9.525mm

4.65mm1.91mm3.6mm

H

12.7mm

6.12mm2.29mm4.3mm

XH

22.225mm

12.57mm6.35mm11.2mm
XXH31.75mm19.05mm9.53mm15.7mm
T55mm2.65mm1.2mm2.2mm
T1010mm5.0mm2.5mm4.5mm
T2020mm10.15mm5.0mm8.0mm
AT55mm2.5mm1.2mm2.7mm
AT1010mm5.3mm2.5mm5.0mm
AT2020mm10mm5.0mm8.0mm
